Sew Engineering Works Pvt. Ltd Pre Fab Division

: We offer :

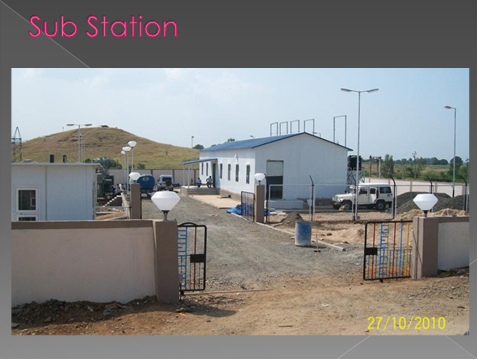

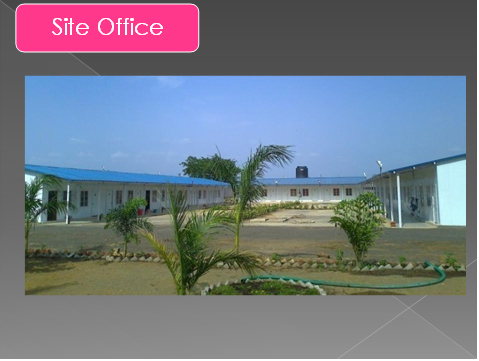

• Design & Construction of pre fabricated buildings like Project office

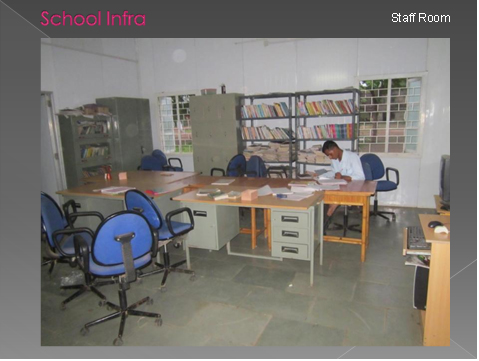

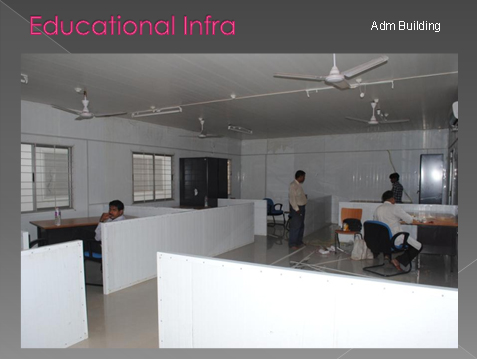

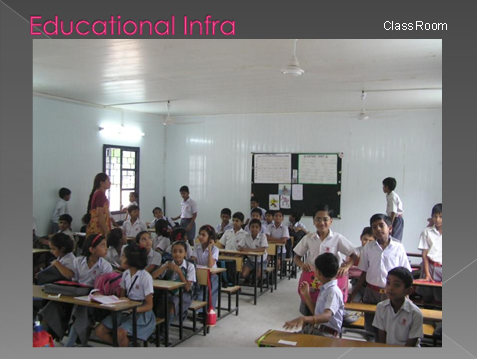

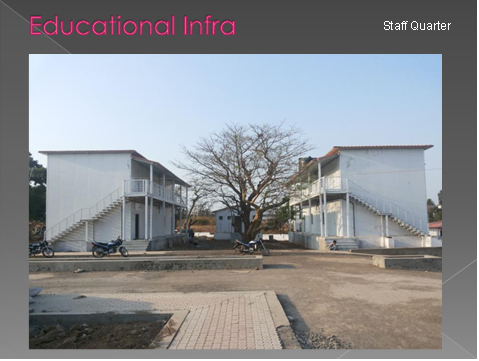

• staff housing, labour houses, mock up flats, stores, guest house, school, hospital etc.
• Construction of drywall using cement or steel PUF insulated sandwich panels.
• Steel forming, steel fabrication.

: Infrastructure :

The company’s factory is well equipped with machineries like roll forming machines, press machine, sheering machine, MIG/Arch welding machines, drill and cutting machines. We have trained and experienced staff to execute the order in time. We also have an in-house design centre.

General and Technical Specifications for Pre fabricated Shelters

• Technical Details of Materials used in Prefabricated Structures
• Roofing Sheets: Pre painted GI Trapezoidal Roof Sheets
• Accessories for Metal Roofing Sheets
• Insulated, Energy Efficient Wall & Roof Systems


• Insulated, Energy Efficient Wall & Roof Systems

Pre painted galvanized sheets (PPGI) of 0.4 mm thick trapezoidal sheets laid over a framework of trusses, columns and purling (made out of rectangular hollow sections of size suitable as per design requirements fixed using suitable HSD screws. A pre painted galvanized ridge cover to be fixed on top junction of the roof using suitable fasteners / HSD screws. PPGI end flashings or drain water gutters considered as per drawing. Insulated roof sheets can be supplied as per requirement.

• Wall

Providing & fixing of wall using 50 / 75 mm thick interlocking aerated concrete wall panels made out of two 5mm thick cement fiber boards (Asbestos free) conforming to IS 14276 - 1995 and with fill by aerated concrete and expandable polystyrene granules/ Polyurethane foam (PUF). The boards shall be fixed on floor and top using 25/52c 1mm thick GI Channels.

• Wall finish

Further 12mm thick plaster (gypsum) board layer on all internal exposed surfaces of walls fixed directly on the wall panels complete with joint finish using jointing compound & fiber tape to give smooth joint less finish. Alternative wall papers shall be considered.

• False Ceiling

Providing & fixing of false ceiling using 595x595x12mm mineral fiber board / gypsum board. The false ceiling panels should be placed on a suspended grid frame made of pre painted GI steel consisting interlocking main runner, intermediate tee sections and wall L angles to form 600 x 600mm grid suspended from ceiling using GI wire of required thickness from roofing structure

• Doors

Frame shall be made of pressed steel using powder coated CR coil 1.25mm thick, shutter will be made out of 32 mm thick wooden / ERP flush door with necessary hardware and approved shade oil paint / laminated finish.

• Windows

Frame made from Pressed steel using powder coated CR 1.25mm Thick C Channels of size 30x52 or 77mm ( as per wall thickness) and MS / aluminum / UPVC window frame with glazed panel using 6mm thick float glass & necessary hardware

• Painting

Outside walls are painted with 2 coats of acrylic paint and inside walls are applied with 2 coats of oil bound distemper or any other paint as per choice.
